Product Brochure

440ml CMYK + White + Clear Inks

1602mm x 1500mm x 50mm Print Bed

1 year on-site warranty

Edge-to-edge printing on substrates up to 50mm thick

Zero drying time - Post printing UV LED system cures ink instantly

UV LED system eliminates warm-up time

Low-temperature operation eliminates media warping

Intelligent Microstepping System for superb precision

Low running costs, saves 2/3 in power *

Compatible with both flexible and rigid media

White ink overlay-printing for vivid colours

Call for price

Prices subject to delivery and VAT

     * compared with conventional halide-lamp UV printing

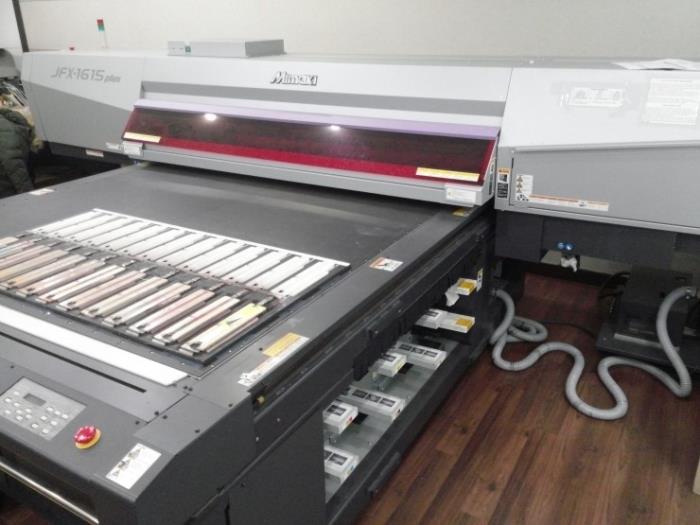

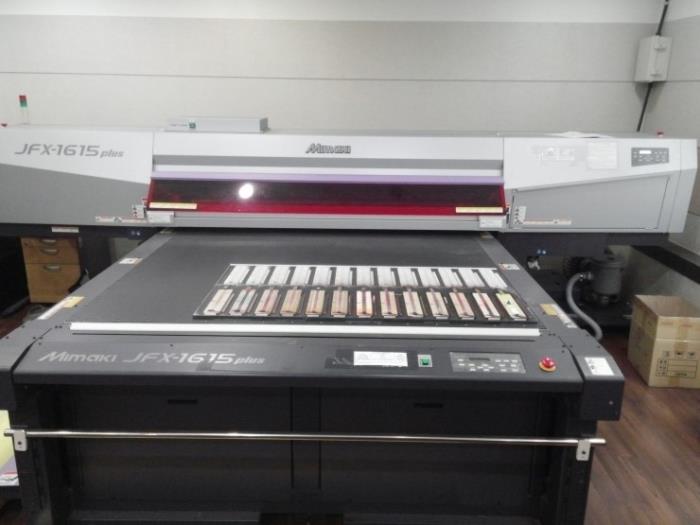

Look to the future with a JFX-1615plus from Signmaster Systems

Powered by Mimaki's cutting-edge technologies including UV LED curing, the IMS(Intelligent Microstepping System), and UV ink application, the JFX-1615plus provides for a new digital workflow that will change the course of the printing industry forever.

Less media deformation and a wider selection of media

The new UV LED curing technology does not emit infrared rays, thus eliminating any thermal deformation of media. The UV LED technology enables printing on heat-sensitive materials such as acrylic and styrene panels. Due to its low operation temperature, users have a broader choice of media. This enables the user to print on up to 50 mm thick substrates, paving the way for new and exciting applications.

Is drying time an obstacle to your productivity? Not any more. UV LED curing means instantaneous drying that eliminates the post-printing drying time which is necessary when printing with acqueous or solvent inks. This innovation leads to a dramatic reduction in job turnaround time (from printing to processing) and to increased productivity.

Another decisive benefit of UV LED technology is the fact that UV LEDs do not need any warm-up time. They can be switched on and off whenever they are needed and used instantly.

Do you need precise, high-quality prints producing fast? The new high-speed heads on the JFX-1615plus enable you to print twice as fast as with Mimaki's JF series. With this innovation, JFX-1615plus achieves a dramatic increase in productivity and a significant reduction in turnaround time.

The newly developed head-positioning mechanism uses a high resolution linear scale for highly accurate dot placement. This results in far fewer banding artifacts and even the possibility of printing characters which will be legible at only 3 points in size.

Maximum resolution of 1200 dpi and variable dot technology (providing 7 different dot sizes) realize near-photographic image quality. Even printing in 4-color mode produces a non-grainy print. With a minimum dot size of 6 pl, sharp edges on small text and smooth skin tones can be created.

This highly specified UV LED curable flatbed inkjet printer is also environmentally friendly. Its UV LEDs have a longer lifetime and save about 2/3 the energy of conventional UV printers employing metal halide lamps.

Compatible with both flexible and rigid media

Vivid colour reproduction with white ink overlay-printing

Incredible resolution and definition

Includes Mimaki RasterLink Pro 5 IP

Designed specifically to fully utilize the powerful features of Mimaki printers, the new generation of RasterLink RIP software gives you total control over what you are printing, for the highest quality output. 16-bit rendering eliminates the tone-jump often observed when using the older 8-bit system.

RasterLink is a user-friendly yet powerful package, allowing free positioning of images on the RIP. Versatile editing functions such as tilting, cropping, scaling and rotation are provided. Networks incorporating both Windows and Apple Macintosh technologies pose no problems to RasterLink, and the latest firmware updates and profile downloads are available through the web update function.

8-bit rendering:

tone jump is likely

to occur in gradation

16-bit rendering:

smooth gradation without tone jump

RasterLink Pro 5 IP is the complete professional RIP package for your Mimaki printer

Product Specifications - Mimaki JFX-1631plus

Head type

On-demand piezo head

Print Resolution

1,200 × 1,200 dpi

Ink types

UV curable ink (both flexible and hard types are available)

CMYK, CMYKW, CMYKWCL

Maximum print width

Width:1,602 mm (63.1 "), Length:3,100 mm (122 ")

Print accuracy

Absolute accuracy

± 0.3 mm (0.01 ") or ± 0.3 % from specified print distance

Repeatability

± 0.2 mm (0.01 ") or ± 0.1 % from specified print distance

Perpendicularity

± 0.5 mm / 500 mm

Media

Thickness

Max. 50 mm (1.97 ")

Weight

Less than 50 kg (110 lbs.)

Media set device

Air suction by vacuum

UV device

Equipped with UV Light Emitting Diodes

Interface

USB 2.0

Standards and Certifications

VCCI class A  -  CE marked  -  CB report  -  UL  -  RoHS directive

Power requirements

AC 200 - 240 V, 50Hz or 60 Hz

Power consumption

Less than 2.0 kVA

Environmental operating conditions

Temperature

15°C - 30°C (59°F - 86°F)

Humidity

35% - 65% Rh

Temperature accuracy

18°C - 25°C (64°F - 77°F)

Temperature gradient

Less than +/- 10°C (18°F) per hour

Dust

Equivalent to normal office levels

Weight

1,600 kg (3,527.4 lbs.)

Dimensions

4,200 mm x 4,300 mm x 1,600 mm (165.4" x 169.3" x 63.0"))

The technical information here is true to the best of our present knowledge. It does not constitute a guarantee for any specific product feature, nor does it establish a legally valid contractual relationship.

Safety Notice: You are dealing with UV light sources that may harm your health. Please follow below guidelines strictly:

* Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.

* Depending upon print mode, there might occur some VOC emittance from printed parts not yet cured and hardened.

* In addition, please read the instructions and guidelines of the manual carefully and follow those.
